Informations

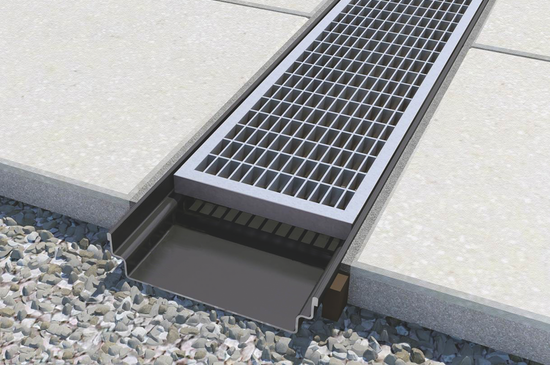

AquaDrain® KR a été spécialement conçu pour garantir une pose simple et rapide sur du gravier/gravillon ou des galettes de mortier. Le garde-gravier intégré au fond du caniveau évite la pénétration d’impuretés grossières dans la couche de drainage. Différentes grilles en acier ou en acier inox offrent de nouvelles possibilités d’aménagement comme celles souvent requises pour les systèmes d’évacuation linéaire des eaux plus longs.
Avantages
-
Reliable.
The door connection is protected from penetration by water caused by accumulation, wind entry or melted snow. -
Quick & easy.
Direct laying on gravel / chippings. Direct connection to the flagging. Connectors make neat installation easier with line drainage. -
Long-term corrosion protection.
The AquaDrain® KR gutter channel is is equipped with a particularly high zinc content. It is also powder-coated after punching to protect against corrosion. -
According to the standard:
Fulfils the requirements of the flat roof directive/ZVDH with a width of 150 mm; also for non-covered areas. - Can be individually shortened.
-
Versatile.

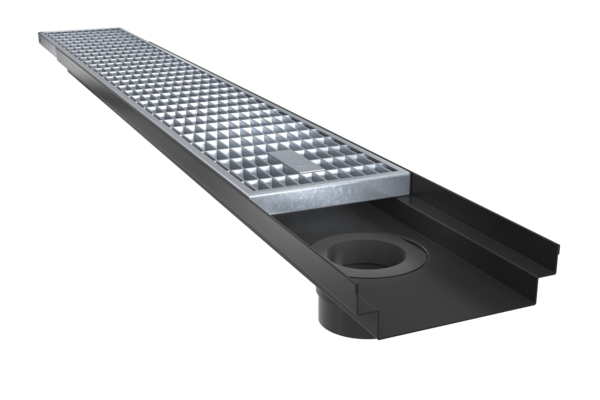

Different grate covers made from galvanized steel or stainless steel open up design options. -
Easy to modify:
Due to removable grate cover.
Système complet
Brèves informations techniques
Utilisation avec fentes : | Devant les portes, fenêtres au ras du sol ou dans le système de drainage linéaire décaissé |
Recoupable : | à la longueur souhaitée |
Covers: |

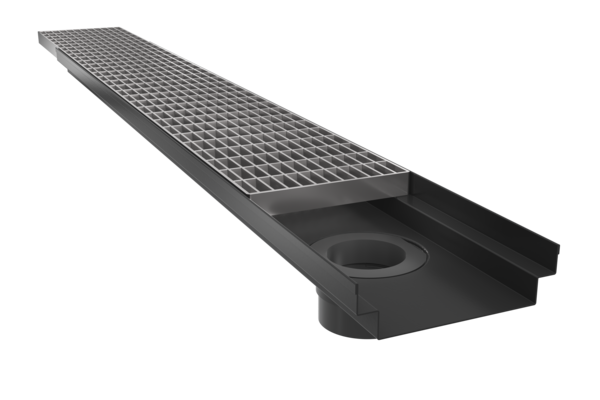

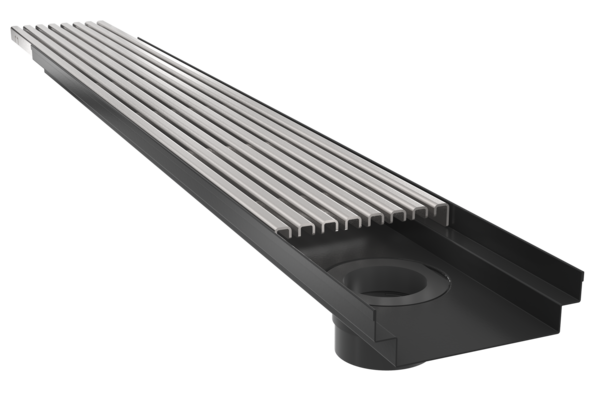

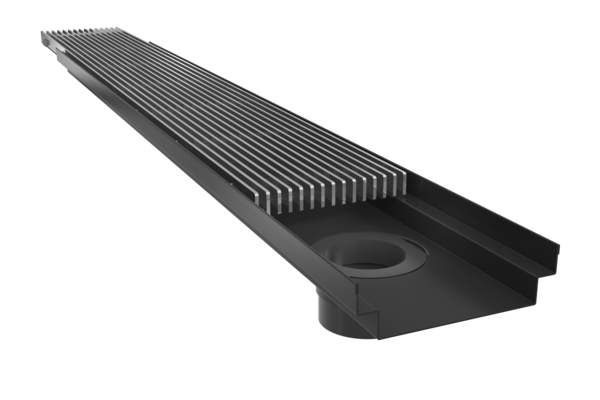

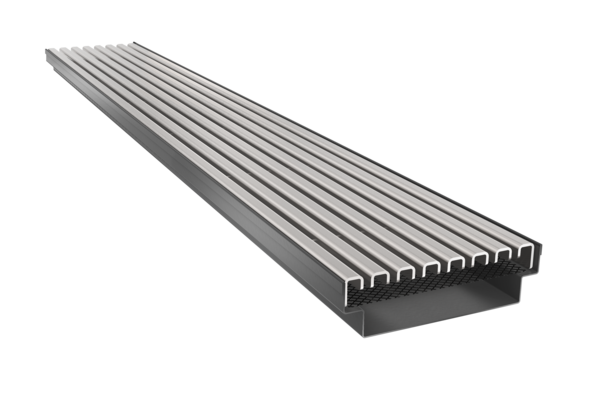

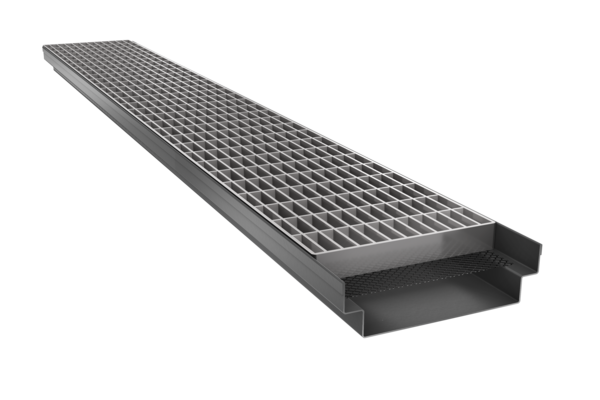

Grid – stainless steel 1.4301 electropolished Profile design – stainless steel 1.4301 glass bead blasted Shadowline design – stainless steel 1.4301 stainless steel flat bars with effectively glittering anthracite-coloured edges |
Can be shortened: | Variable |
Gutter channel: |
Sendzimir galvanized sheet steel, powder coated anthracite metallic DB 703 - with recess and horizontal surface for the screw fitting |

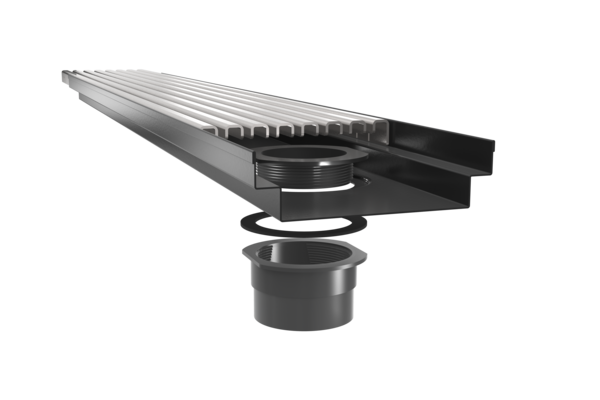

Screw fitting: |
Connecting facility - DN75 Colour – anthracite metallic PVC-U – weather and UV resistant; Extremely impact resistant and dimensionally stable With sealing ring |
