TerraMaxx® COMFORT

The unique heating system for supported coverings

Informacje

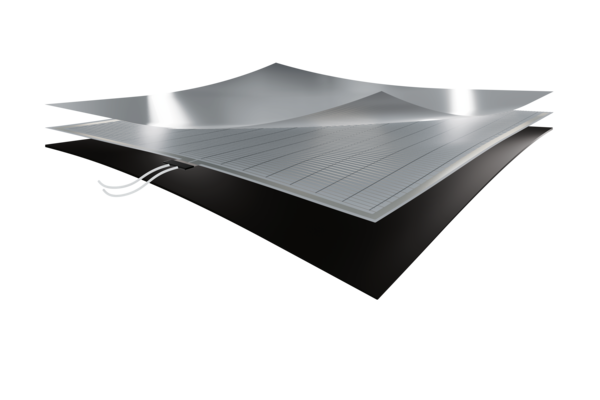

TerraMaxx® COMFORT is a heating element which consists of a thin-layer heating film with an insulation layer on the back. The heating film only supplies as much energy as is needed, limits the temperature and regulates itself. This ensures that optimum energy consumption takes place.

The TerraMaxx® Comfort heating modules are self adhesive, and are simply attached to the back of the flagging. The make partial warming of the covering possible and therefore longer utilisation of the outdoor area during the transition period. TerraMaxx® COMFORT provides real comfort for gastronomy, event locations, and in the seating area of terraces or the surroundings of pools / wellness areas.

Przeczytaj więcej

Zalety

  • Quick and easy processing:
    thanks to the self-adhesive film on the back.
  • Powerful:
    With maximum output of 280 Watts per module (approx. 840W/m²)
  • Pleasant surface temperatures
    of approx. 24° C
  • Quick response

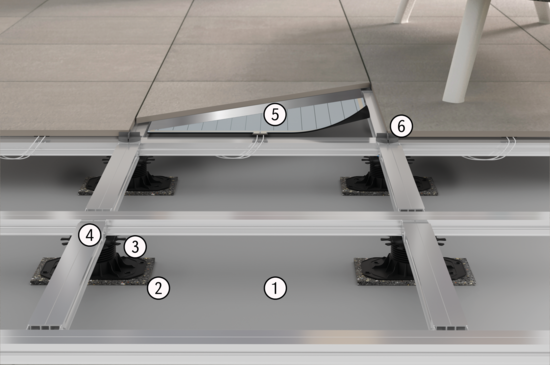

Cały system

1 DiProtec® SDB Szybka membrana uszczelniająca
2

TerraMaxx® TSL support
3 TerraMaxx® TSL Suchy wspornik tarasowy
4 TerraMaxx® RS (ceramika) System ram aluminiowych
5

TerraMaxx® COMFORT heating element
6

TerraMaxx® RS XS tile spacer

Skrócone informacje techniczne

Area of application For heating/temperature control of raised outdoor coverings
Suitable laying systems - with TerraMaxx® TSL
- with TerraMaxx® RS
Coverings Supported coverings made from ceramic or natural stone in 60 x 60 mm, 60 x 120 mm and 120 x 120 mm formats
