AquaDrain® EKCapillary passive surface drainage for coverings on drainable bedding mortar / floor screed
AquaDrain® EK is an anti-capillary surface drainage mat which has been specially designed for laying outdoor coverings on drainage mortar. Thanks to the unique mesh, the raising of the entire surface and a high drainage volume, the system provides rapid and immediate drainage.
Laminated mesh raises the entire covering – for a long-term high-quality drainage function.
The only mesh with tested long-term durability (research by German Materials Testing Institute (MPA), Darmstadt).
The quickest draining of seepage water on the waterproofing layer.
More than 100 times faster than drainage/single grain mortar alone (kiwa German Institute for Textile Construction and Environmental Technology (tBU), Greven).
Anti-capillary function provides reliable protection.
Proven to eliminate frost damage, efflorescence and moisture stains caused by accumulated water (Research by German Materials Testing Institute (MPA), Darmstadt).
Up to + 30 dB footfall sound improvement.
(Research by Construction Acoustics Laboratory, University of Rhine-Main).
- Can also be used for large-size formats outdoors.
- 6 year warranty for specialist companies.

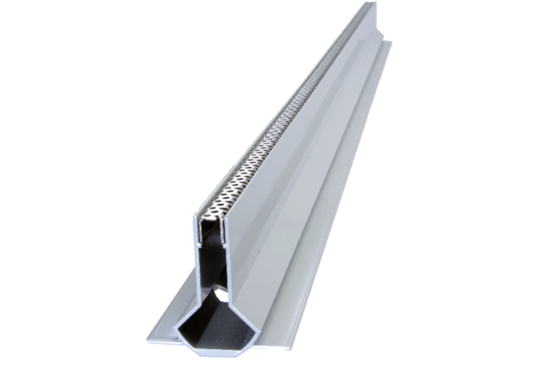

|1||ProFin® DP & ProFin® BL Profile and panel|

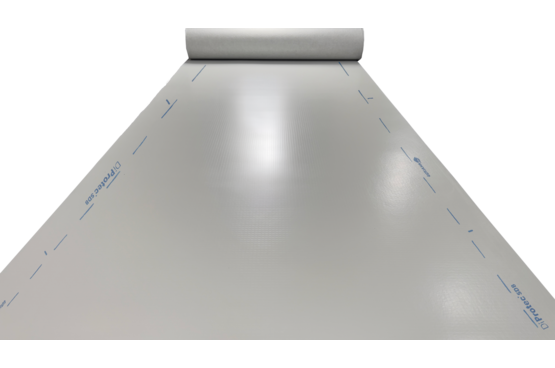

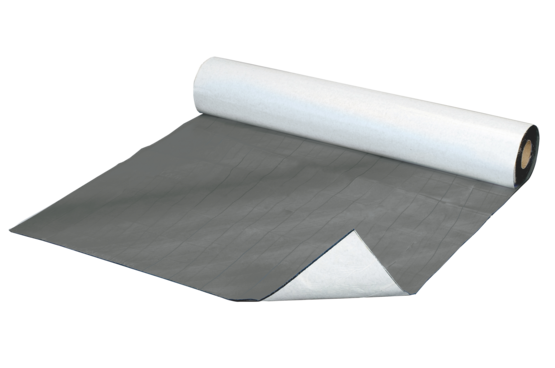

|2||DiProtec® SDB Quick sealing membrane|
AquaDrain® TR reinforced separating layer
|4||AquaDrain® EK Surface drainage systems|
AquaDrain® edge insulating strip with self-adhesive foot

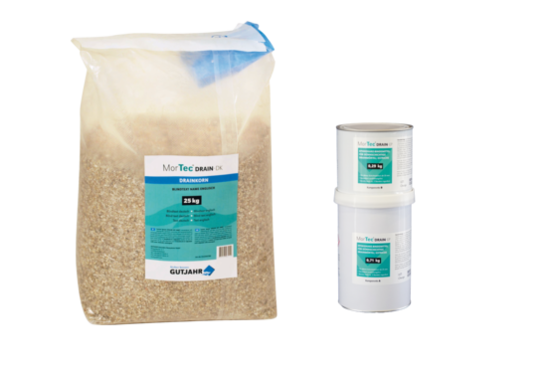

|6||MorTec® DRAIN-ZE Drainage mortar|
|7||TerraMaxx® PF-FM Fixiermasse als Haft-/Kontaktschicht [EN]|

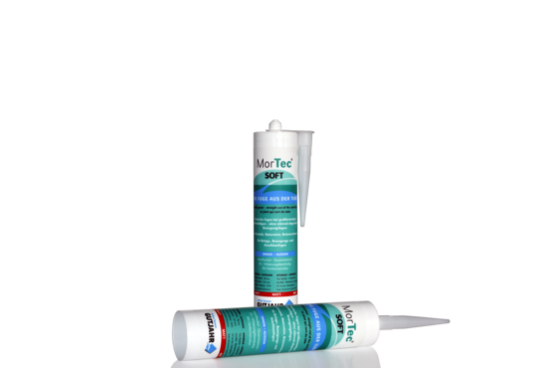

|8||MorTec® SOFT the joint filler from a tube|

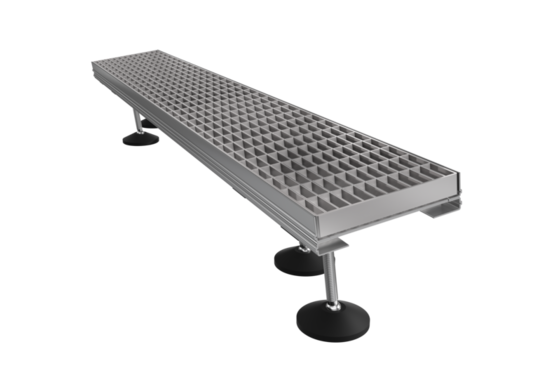

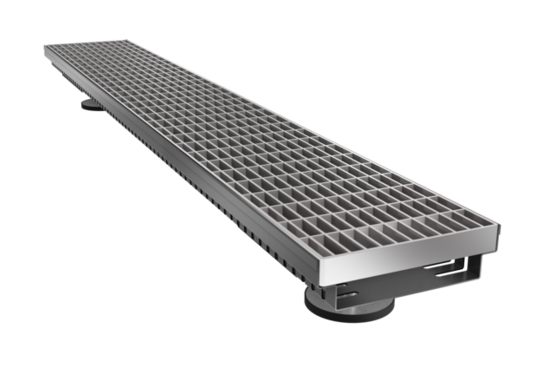

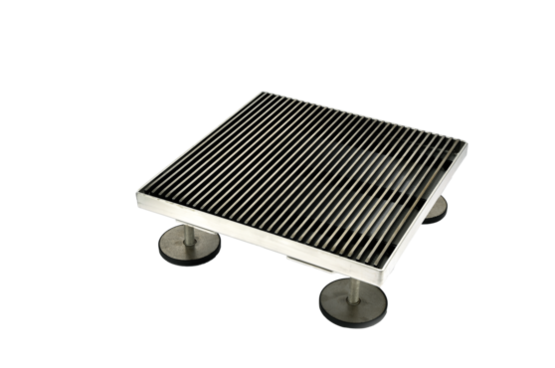

|9||AquaDrain® FLEX Drain grate|
|10||ProRin® BR Balcony gutter system|
AquaDrain® perforated angle bracket
Brief technical information
|Area of application||For walk-on surfaces in private and public areas, e.g. on (roof) terraces and balconies.|
|Types of covering||Coverings such as those recommended by the covering manufacturer for the respective usage area and the respective type of covering laying are suitable.|
• Bonded substrates,screeds, concrete surfaces with or without waterproofing
• Old tiles, old coverings
|Footfall noise improvement||Up to +30dB|
AquaDrain® EK +8 mm
100 % Fall= 4.35 l/(m*s)
10 % Fall= 1.35l/(m*s)
1.5 % Fall= 0.50 l/(m*s)
AquaDrain® EK +16 mm
100 % Fall= 9.33 l/(m*s)
10 % Fall= 2.98 l/(m*s)
1.5 % Fall= 1.16 l/(m*s)
|Insulation||Compressive strength ≥ 120 kPa|
